Laser Ranging                     Targeting                     Safe Guarding


- Lasers with Eye safe wavelength

- Fully independent development by LumiSpot Tech

- Patent & intellectual property protection

- High reliability, high cost performance

- High stability, high impact resistance

- The fully assembled rangefinder can be used directly

Product Detail

Product Tags

Product Description

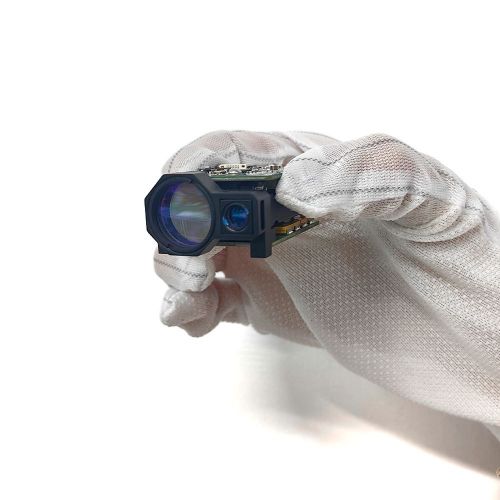

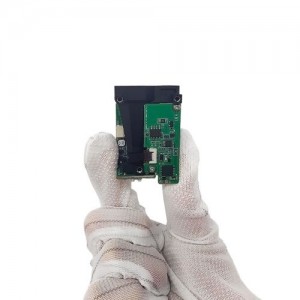

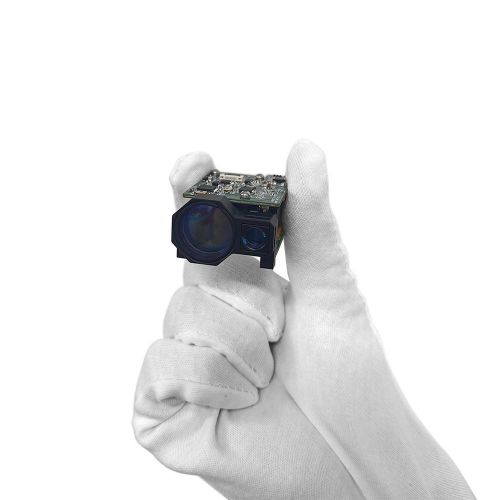

Lumispot Tech's LSP-LRS-0310F Micro Laser Rangefinder Module (Ranging Module), is a paramount tool in precision distance gauging within the realm of photoelectric systems. This eye safety-certified laser module excels in delivering accurate distance readings, crucial for diverse applications requiring the utmost precision and reliability.


Technical Brilliance:

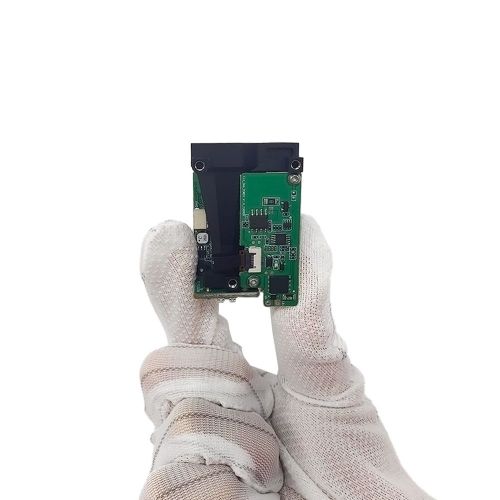

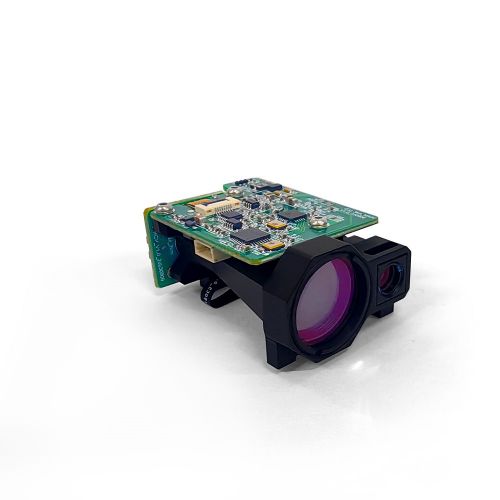

The LSP-LRS-0310F stands out with its meticulous composition, featuring an integrated laser, a state-of-the-art transmitting optical system, a high-sensitivity receiving optical system, and an advanced control circuit. This synergy allows for a remarkable operating range, capable of visible conditions visibility of up to 6km and vehicle ranging (2.3m×4.6m target) of at least 3km, under optimal conditions with diffuse reflectance ≥0.3 and humidity levels ≤80%.


Functionality and Performance:

Designed for versatility, the module supports both single and continuous ranging, enhanced with range strobe and indications for front and rear targets. Its self-inspection function underscores the unit's reliability, ensuring consistent performance. Key performance attributes include:

- A precise wavelength of 1535nm±5nm ensures optimal laser focus.
- Minimal laser divergence at ≤0.5mrad, maintaining a tight, consistent laser spot.
- Adjustable continuous ranging frequency from 1~10Hz, catering to diverse operational needs.
- Unmatched ranging accuracy of ≤±1.5m (RMS) and a success rate of ≥98%, even with the minimum measuring range of ≤20m.
- Exceptional ranging resolution of ≤30m in multi-target scenarios.

Efficiency and Adaptability:

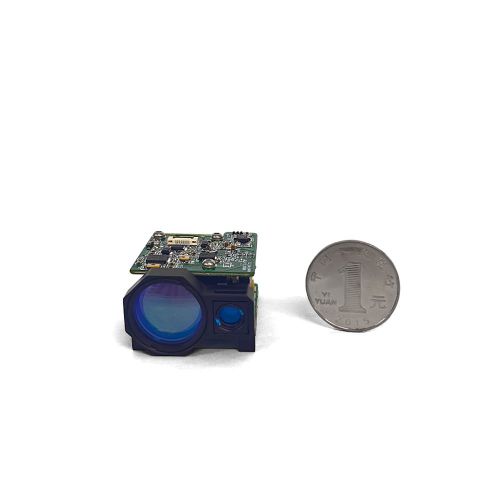

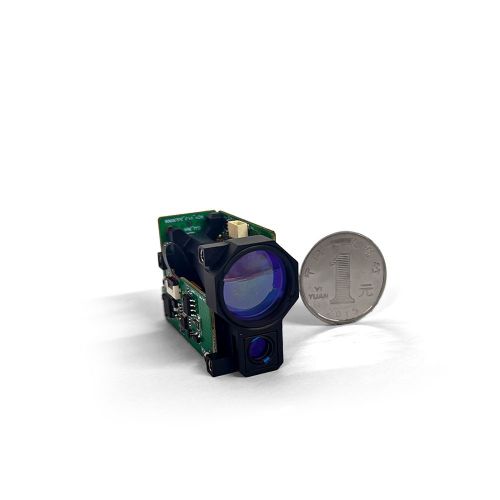

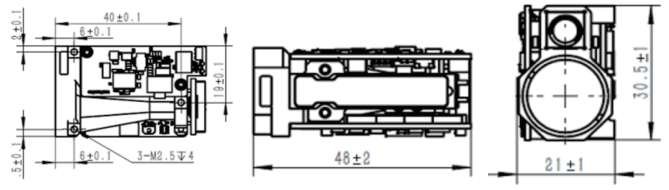

 Despite its potent performance, the LSP-LRS-0310F maintains energy efficiency, with an average power consumption of less than 1.0W at 1Hz operation and peak levels at a mere 5.0W. Its compact dimensions (≤48mm×21mm×31mm) and featherlight weight of ≤40g make it an unobtrusive addition to any system.


Robustness for Real-World Conditions:

The module is unfazed by extreme temperatures, operational from -40℃ to +65℃ and storable from -50℃ to +70℃. It accommodates a wide range of power supply voltages from DC6V to 36V (customizable on request), ensuring compatibility with various power sources.


Seamless Integration:

For enhanced interfacing, the module features a TTL serial port communication interface operating at 115200bps and a specialized electrical interface (A1002WR-S-6P), promising seamless integration and straightforward deployment.


Lumispot Tech's LSP-LRS-0310F is more than a laser rangefinder module; it's the embodiment of precision, efficiency, and adaptability. It brings a competitive edge to professionals in the industry, offering a blend of advanced features and uncompromised performance, ensuring that every measurement is a step towards perfection. For those seeking a reliable, high-performance ranging solution, look no further.

Contact us to learn more about how the LSP-LRS-0310F can revolutionize your distance measurement applications.

Related News

* If you need more detailed technical information about Lumispot Tech's laser ranging modules, you can download our datasheet or contact them directly for further details. These lasers offer a combination of safety, performance, and versatility that makes them valuable tools in various industries and applications.

Key product-related highlights include:

1.Eye Safety Compliance: Ensures safe operation within all professional settings.
2.Long-Distance Targeting: Capable of detailed visibility up to 6km and effective vehicle ranging up to 3km under optimal environmental conditions.
3.High-Performance Ranging: Features include single and continuous distance measurement, range strobing, and advanced target indication functionalities.
4.Superior Accuracy: Delivers precise readings with an accuracy deviation of less than ±1.5m, catering to the most precision-sensitive tasks.
5.Enhanced Durability: Designed for resilience, withstanding operational and storage temperatures ranging from -40℃ to +70℃.


We Support Customization For This Product

  • Discover our comprehensive array of High Power Diode Laser Packages. Should you seek tailored High Power Laser Diode Solutions, we kindly encourage you to contact us for further assistance.
Part No. Min. Range Distance Ranging Distance Wavelength Ranging Frequency  Size Weight Download


20m ≥ 3km 1535nm±5nm 1Hz-10Hz (ADJ) 48*21*31mm 0.35kg pdfDatasheet
