As precision ranging technology continues to break new ground, Lumispot leads the way with scenario-driven innovation, launching an upgraded high-frequency version that boosts ranging frequency to 60Hz–800Hz, providing a more comprehensive solution for the industry.
The high-frequency semiconductor laser ranging module is a precision distance measurement product based on high-frequency pulse technology. It utilizes advanced signal processing algorithms to achieve high-precision, non-contact distance measurement, featuring strong anti-interference, fast response, and excellent environmental adaptability.
The development logic behind the semiconductor laser ranging modules clearly reflects Lumispot’s technical philosophy: “Solidify foundational performance, deeply explore vertical application scenarios.”
Product Features
Ultra-Fast Response, Victory in Milliseconds:
- Ranging frequency boosted to 60Hz–800Hz (compared to 4Hz in the original version), achieving a 200-fold increase in target refresh rate with zero delay in dynamic tracking.
- Millisecond-level response enables UAV swarm obstacle avoidance, allowing systems to make decisions faster than risk develops.
Rock-Solid Stability, Precision Unmatched:
- High-repetition pulse stacking combined with stray light suppression improves signal-to-noise ratio by 70% under complex lighting, preventing “blindness” in strong or backlighting.
- Weak signal processing algorithms and error correction models enhance ranging accuracy, capturing even the slightest changes.
Core Advantages

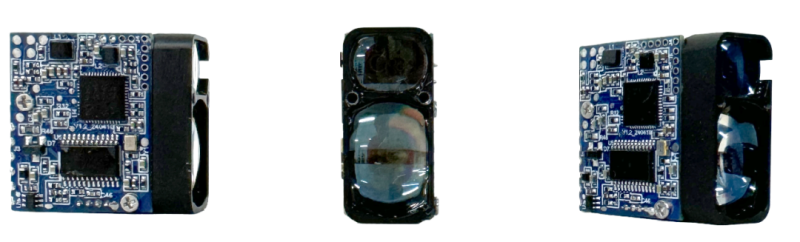

The high-frequency semiconductor laser ranging module retains the core characteristics of Lumispot’s existing product line. It supports seamless in-situ upgrades without the need to retrofit existing equipment, significantly reducing user upgrade costs.
Compact Size: ≤25×26×13mm
Lightweight: Approx. 11g
Low Power Consumption: ≤1.8W operating power
While maintaining these advantages, Lumispot has increased the ranging frequency from the original 4Hz to 60Hz–800Hz, while preserving the distance measurement capability of 0.5m to 1200m — fulfilling both frequency and distance requirements for customers.
Built for Harsh Environments, Engineered for Stability!
Strong Impact Resistance: Withstands shocks up to 1000g/1ms, excellent anti-vibration performance
Wide Temperature Range: Operates reliably in extreme temperatures from -40°C to +65°C, suitable for outdoor, industrial, and complex conditions
Long-Term Reliability: Maintains accurate measurement even under continuous operation, ensuring data integrity
Applications
The high-frequency semiconductor laser ranging module is primarily used in specific UAV pod scenarios to quickly obtain target distance information and provide accurate data for situational awareness.
It is also applicable in UAV landing and hovering, compensating for altitude drift during hover.

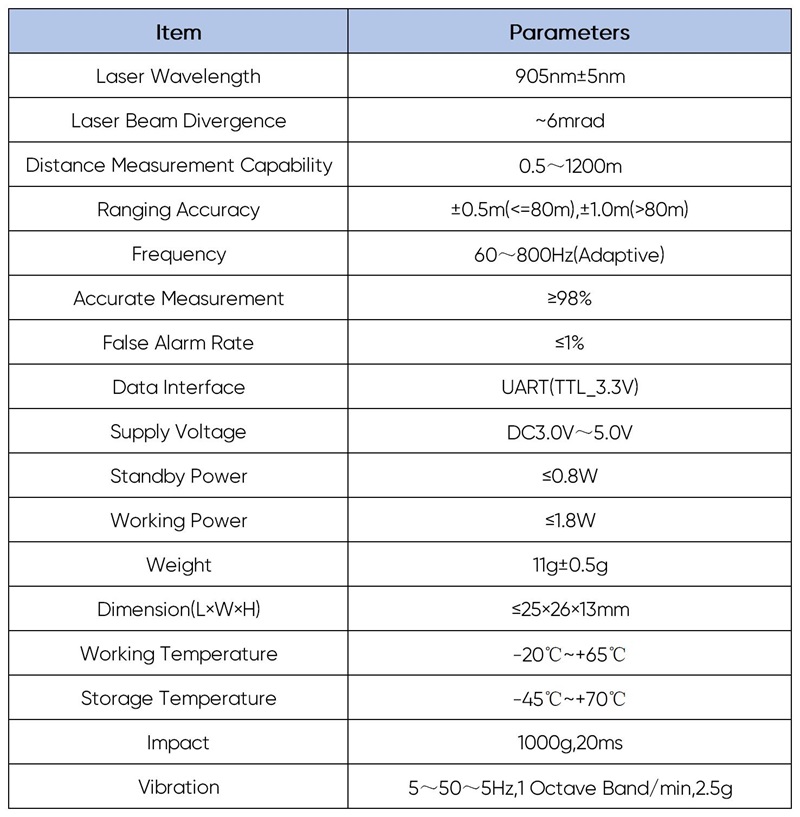

Technical Specifications
About Lumispot
Lumispot is a high-tech enterprise focused on the R&D, production, and sales of various laser pump sources, light sources, and laser application systems for specialized fields. The product portfolio covers:
- Semiconductor lasers in a range of wavelengths (405 nm–1570 nm) and power levels
- Line laser illumination systems
- Laser ranging modules of various specifications (1 km–70 km)
- High-energy solid-state laser sources (10mJ–200mJ)
- Continuous and pulsed fiber lasers
- Optical fiber coils with and without skeletons for fiber optic gyroscopes (32mm–120mm)
Lumispot’s products are widely used in electro-optical reconnaissance, LiDAR, inertial navigation, remote sensing, counterterrorism and EOD, low-altitude economy, railway inspection, gas detection, machine vision, industrial laser pumping, laser medicine, and information security across specialized sectors.
Certified with ISO9000, FDA, CE, and RoHS qualifications, Lumispot is a nationally recognized “Little Giant” enterprise for specialization and innovation. It has received honors such as the Jiangsu Province Enterprise PhD Cluster Program, provincial and ministerial-level innovation talent designations, and serves as the Jiangsu Provincial Engineering Research Center for High-Power Semiconductor Lasers and a Provincial Graduate Workstation.
The company undertakes numerous major provincial and ministerial-level research projects under China’s 13th and 14th Five-Year Plans, including key programs of the Ministry of Industry and Information Technology.
Lumispot emphasizes scientific research, prioritizes product quality, and adheres to the core principles of putting customer benefit first, ongoing innovation first, and employee growth first. At the forefront of laser technology, Lumispot aims to lead industrial transformation and become a global pioneer in the specialized laser information sector.
