Laser Dazzling System
Product characteristics
The Laser Dazzling System (LDS) mainly consists of a laser, an optical system, and a main control board. It has the characteristics of good monochromaticity, strong directionality, small size, light weight, good uniformity of light output, and strong environmental adaptability. It is mainly used in border security, explosion prevention and other scenarios.
product function
The LSP-LRS-0516F laser rangefinder consists of a laser,a transmitting optical system,a receiving optical system and a control circuit.
Visibility under the conditions of visibility is not less than 20km,humidity ≤ 80%,for large targets(buildings)ranging distance ≥ 6km;For vehicles(2.3m×2.3m target,diffuse reflectance ≥ 0.3)ranging distance ≥ 5km;For personnel (1.75m× 0.5m target plate target,diffuse reflectance ≥ 0.3)ranging distance ≥ 3km.
The LSP-LRS-0516F Main functions:
a)single ranging and continuous ranging;
b)Range strobe,front and rear target indication;
c)Self-test function.
Application areas of products
Counter-terrorism
Peace-keeping
Border security
Public security
Scientific research
Laser lighting applications
Specifications
| Item |
Parameter |
||
| Product |
LSP-LDA-200-02 |
LSP-LDA-500-01 |
LSP-LDA-2000-01 |
| Wavelength |
525nm±5nm |
525nm±5nm |
525nm±7nm |
| Working mode |
Continuous/Pulse(Switchable) |
Continuous/Pulse(Switchable) |
Continuous/Pulse(Switchable) |
| Operating distance |
10m~200m |
10m~500m |
10m~2000m |
| Repetition Frequency |
1~10Hz(Adjustable) |
1~10Hz(Adjustable) |
1~20Hz(Adjustable) |
| Laser divergence Angle |
— |
— |
2~50(Adjustable) |
| Average power |
≥3.6W |
≥5W |
≥4W |
| Laser peak power density |
0.2mW/cm²~2.5mW/cm² |
0.2mW/cm²~2.5mW/cm² |
≥102mW/cm² |
| Distance measurement capability |
10m~500m |
10m~500m |
10m~2000m |
| Power on light output time |
≤2s |
≤2s |
≤2s |
| Working voltage |
DC 24V |
DC 24V |
DC 24V |
| Electrical Power Consumption |
＜60W |
＜60W |
≤70W |
| Communication method |
RS485 |
RS485 |
RS422 |
| Weight |
＜3.5Kg |
＜5Kg |
≤2Kg |

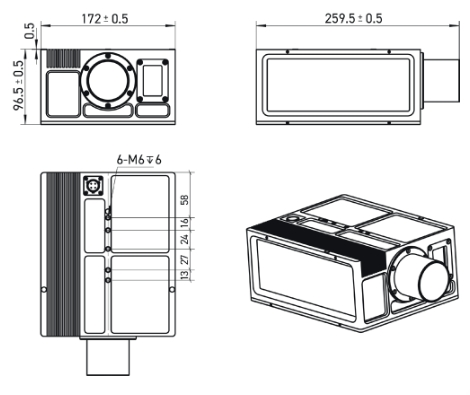

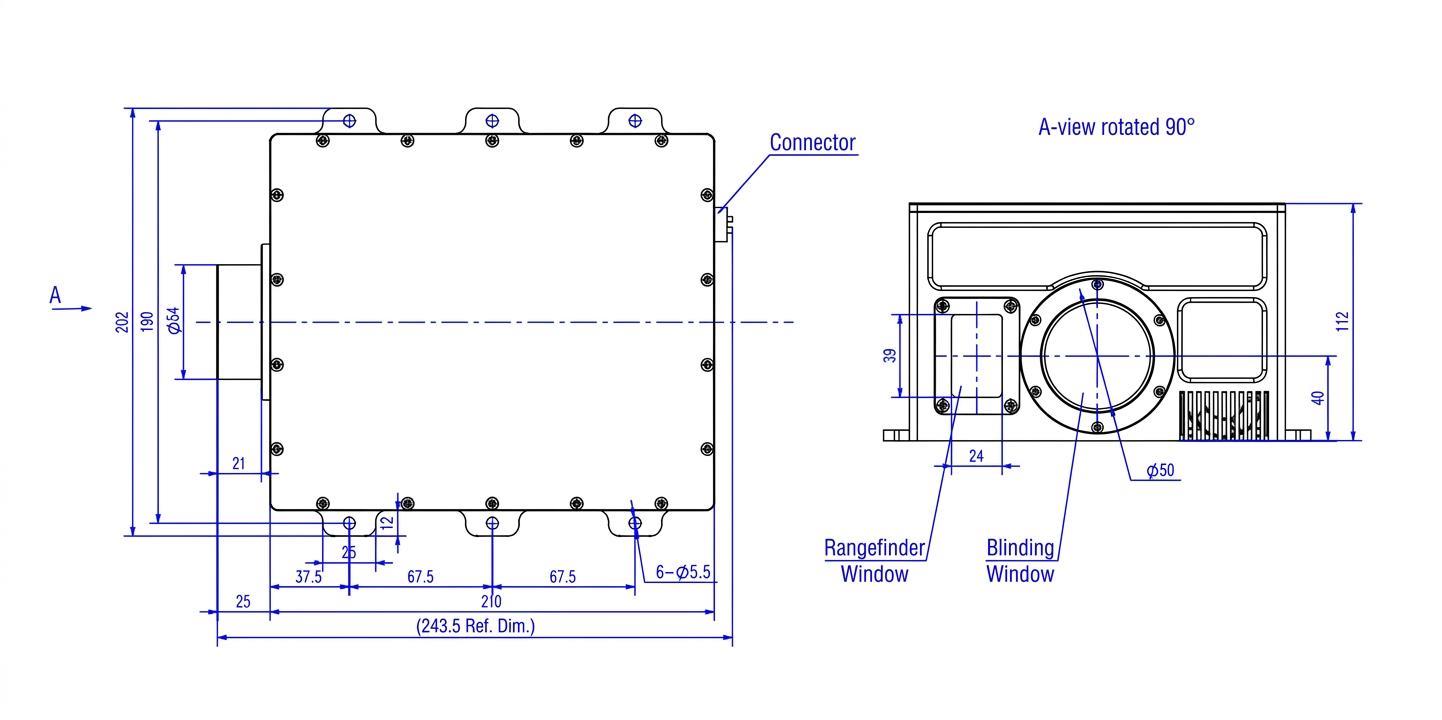

| Size |
260mm*180mm*120mm |
272mm*196mm*117mm |
— |
| Heat dissipation method | Air cooling | Air cooling | Air cooling |
| Operation temperature |
-40℃~+60℃ |
-40℃~+60℃ |
-40℃~+60℃ |
|
Download |
Datasheet |
Datasheet |
Datasheet |
Product Detail
