2000-meter Ranging Without Excessive Stacked Hardware

Delivering optimal performance with minimized hardware costs

Introduction

While the market generally equates long-distance ranging with high costs, we adopt an innovative development philosophy. Based on mature and proven optomechanical structures, we have systematically reconstructed the entire hardware cost framework instead of settling for basic performance. Through optimized component selection, streamlined circuit design and integrated supply chain management, we have minimized material costs without compromising product reliability.

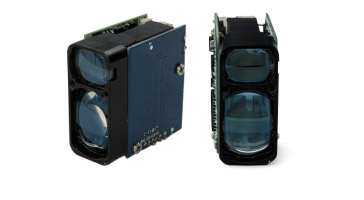

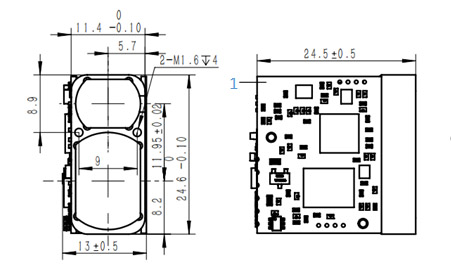

Supported by in-depth underlying algorithm tuning and multi-engine fusion technology, this compact 905nm semiconductor laser ranging module with a dimension of only 25×26×13mm achieves a stable actual ranging capability of 2000 meters for large targets. More importantly, it features full-temperature-range adaptability by design, operating stably at an ultra-low temperature of -40℃ without additional heating assistance.

1. Streamlined Hardware, Maximized Performance

For cost-sensitive products, every electronic component and circuit design requires rigorous iteration and optimization. We have implemented three core optimizations for this module:

Precise and cost-effective component selection: On the premise of meeting all core performance indicators, we have conducted multiple rounds of substitution verification and derating design for peripheral devices including amplifiers, comparators and clock sources. We screened high-quality components with sufficient performance margins and significantly lower costs, eliminating redundant costs from the source.

Simplified yet complete circuit architecture: We redesigned the power topology and signal link structure, merged shared functional circuits, and streamlined redundant protection and filtering stages. The circuit structure is highly simplified while maintaining excellent anti-interference capability.

Stable and mature optical adaptation: We adopt the original proven optomechanical structure without disruptive optical modifications, avoiding high costs of mold opening and optical calibration. All cost optimization benefits are fully converted into highly competitive product pricing.

The performance gap brought by streamlined hardware is fully compensated by advanced algorithms. Through collaborative optimization of multi-dimensional waveform reconstruction, adaptive smoothing and peak tracking algorithms, we fully explore the potential of optimized hardware. The module achieves precise ranging performance with an accuracy of ±1m within 1000 meters and ±(0.2+0.0015×D) beyond 1000 meters. It maintains a valid measurement rate of ≥98% and a false alarm rate of ≤2%, fully comparable with high-cost hardware-stacked solutions.

2. Built-in Ultra-Low Temperature Resistance, Stable Operation at -40℃ Without Auxiliary Heating

Low-temperature environments have always been a major challenge for optoelectronic modules. Most conventional products require external heaters or performance derating below 0℃, which increases power consumption and overall costs while extending startup time. In contrast, this module is designed with full-temperature-range adaptability as a core baseline from the initial product iteration.

Component selection, optical path compensation and circuit bias are all finalized for a wide operating temperature range of -40℃ to +65℃. No external heating equipment or user-side temperature compensation calibration is required, realizing true all-weather stable operation in extreme cold environments.

3. Dual Performance & Power-Saving Modes, Freely Switchable as Required

To adapt to diverse application scenarios, we have independently designed a dual working mode for flexible switching between high precision and long battery life:

Performance Mode (Adaptive): The algorithm operates at full capacity with an adaptive measurement frequency of up to 10Hz and in-depth echo processing, ideal for dynamic target tracking scenarios.

Power-Saving Mode (1Hz): Dynamically adjusts algorithm operating load and measurement frequency to further reduce power consumption, perfectly suitable for battery-powered portable devices and long-term unattended monitoring stations.

The two modes can be switched freely via instructions, enabling a single module to deliver both high-performance ranging and ultra-low power consumption advantages.

4. Low Power Consumption & Easy Integration

- Supports wide voltage input of DC 3.0~5.0V, compatible with most low-voltage system devices;

- Average power consumption ≤0.85W under 1Hz continuous operation (actual air test), with low heat generation and low heat dissipation pressure, greatly simplifying system integration;

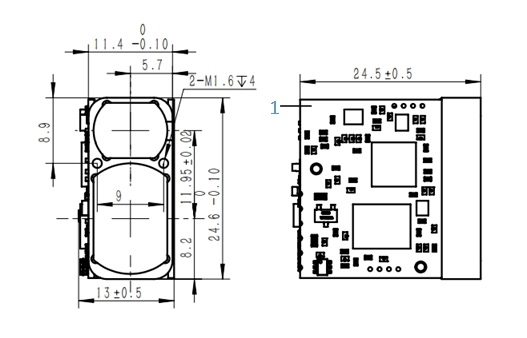

- Ultra-light weight of only 11g and compact size of 25×26×13mm, easy to embed in UAV pods, handheld rangefinders, security PTZ cameras and various terminal devices.

5. Comprehensive Environmental Adaptability for Harsh Conditions

Beyond excellent low-temperature resistance, this module delivers outstanding all-round environmental adaptability:

- Operating temperature: -40℃~+65℃; Storage temperature: -45℃~+70℃;

- Impact resistance: 1000g/20ms; Vibration resistance: 5~50~5Hz, 2.5g;

- Startup time ≤200ms, supporting instant ranging after power-on with no preheating required.

It operates stably in extreme scenarios including frigid border areas, scorching deserts, airborne vibration and ground impact environments.

6. Performance Specifications

Note: Test conditions: visibility ≥10km, humidity ≤60%, reflectivity ≥0.3; Large target: target size larger than laser spot size.

Conclusion

We never compromise between cost and performance. We reduce redundant costs through refined hardware design and compensate performance losses with optimized algorithms. If you are looking for a cost-competitive laser ranging module that supports 2000-meter long-distance ranging, delivers high precision, operates stably at -40℃ and features low power consumption, this product is your ideal choice.

Instead of paying for overpriced redundant hardware, choose intelligent system solutions from Lumispot. Welcome to contact us for detailed technical documents and sample support to verify its superior performance in person.

Streamline hardware, optimize algorithms, reduce costs, amplify performance.
