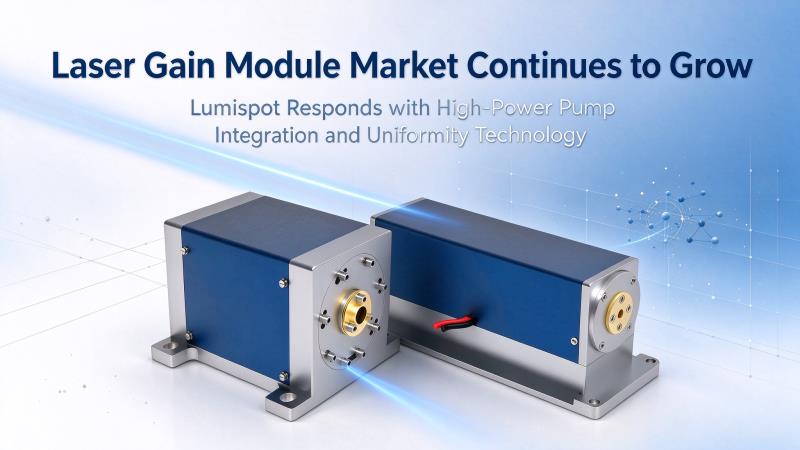

Laser gain modules are core components of solid-state lasers, responsible for converting pump energy into laser output. According to the “2025-2030 China Laser Gain Module Industry Market Research and Development Prospects Report” by Xinsijie Industrial Research Center, laser gain modules typically operate in CW or QCW mode and can build various DPSS lasers for laser marking, laser micro-processing, and scientific research. In this growing market, Lumispot addresses industry needs with high-power pump integration and gain distribution uniformity optimization technology, offering complete pumping solutions for high-energy solid-state lasers.
1. Laser Gain Modules: The“Heart”of DPSS Lasers
Laser gain modules amplify optical signals, converting energy from the pump source into laser output. DPSS lasers use laser diodes as pump sources and Nd:YAG crystals as gain media.
DPSS lasers offer high pulse peak power, high energy conversion efficiency, high beam quality, low power consumption, and compact size, playing critical roles in communications, remote sensing, radar, test and analysis, and laser processing.
As solid-state laser applications expand and performance requirements rise, the market space for laser gain modules continues to grow.
2. Industry Technology Trend: From“Can It Pump”to“Does It Pump Uniformly”
To achieve high-power, high-quality laser output, gain module technology continues to advance. Industry research notes that end-pumped slab gain module designs combine the advantages of end-pumping and slab geometry, improving beam quality, average output power, and heat dissipation capability.
Meanwhile, as laser systems move toward higher power, higher repetition rates, and higher duty cycles, traditional side-pumped modules face increasing technical challenges. Lumispot technical materials note that under high-power operation, uneven pump energy distribution inside the gain medium can cause asymmetric thermal lens effects, complex self-focusing, beam quality degradation, and optical damage risk, significantly affecting output stability and long-term reliability.
3. Lumispot’s Response: Balancing Power and Quality Through Pump Homogenization
To address these challenges, Lumispot has developed advanced diode side-pumped gain module technology, achieving breakthroughs in both high-power pump integration and gain distribution uniformity.
- Gain distribution uniformity exceeding 90%.Lumispot’s proprietary pump homogenization technology, utilizing a circumferential symmetric side-pump layout, achieves uniform energy distribution within the gain medium, effectively suppressing non-uniform thermal effects, thermal lens distortion, and self-focusing.
- High-power pump integration up to 80kW. The modules use self-developed high-power semiconductor laser bars with a multi-dimensional side-pumping structure and high-density integrated packaging, maintaining gain uniformity while delivering high pump power.
- High duty cycle for high-repetition-rate operation. QCW series modules support a maximum duty cycle of 25%, enabling high repetition rate operation for demanding industrial and high-energy laser applications.
- Optical-to-optical conversion efficiency exceeding 45%–50%.Full-chain optimization from semiconductor materials to chip structures and packaging improves pump efficiency while reducing overall power consumption.
- Compatibility with multiple gain media.The modules support Nd:YAG, Nd:YLF, Er:YAG, and Nd:YVO₄, with crystal diameters from Φ2mm to Φ25mm for flexible integration.
- Designed operational lifetime exceeding 20,000 hours.Hard solder bonding and advanced thermal management ensure long-term reliability under high-power, high-duty-cycle conditions.
4. Product Series: Complete Coverage from CW to QCW
Lumispot DPL series gain modules cover both Continuous Wave (CW) and Quasi-Continuous Wave (QCW) operation modes.
CW series offers 50W to 500W of 1064nm laser output power, including C240-3, C270-3, C300-3, C1000-7, and C1500-7 models, suitable for laser cutting, laser marking, diamond cutting, and nano/pico-second laser amplifiers.
QCW series provides higher peak pump power and flexible repetition rate and pulse width configurations. The Q10000-15, for example, operates in QCW mode with 10000W peak pump power, 250μs pulse width, and 500Hz repetition rate, water-cooled and suitable for OPO, nano/pico-second laser amplifiers, and high-gain pulsed pump amplifiers.
Industry analysis projects the global DPSS laser market will grow at approximately 8.3% CAGR from 2023 to 2029. Leading DPSS laser manufacturers are concentrated in Europe and the US, while domestic companies need to accelerate independent R&D. Against this backdrop, laser gain modules—as core components—will directly impact the competitiveness of downstream laser systems.
Lumispot continues to advance its CW and QCW product series, centered on pump homogenization technology and high-power pump integration, delivering stable and efficient pumping solutions for industrial processing, scientific research, medical equipment, and advanced laser applications.
As solid-state lasers advance toward higher power and higher repetition rates, the technical threshold for laser gain modules will continue to rise. Lumispot differentiates through pump homogenization technology, balancing power and beam quality to provide complete core light source solutions from CW to QCW for high-energy solid-state lasers.
