A New Standard in Non-Lethal Area Denial

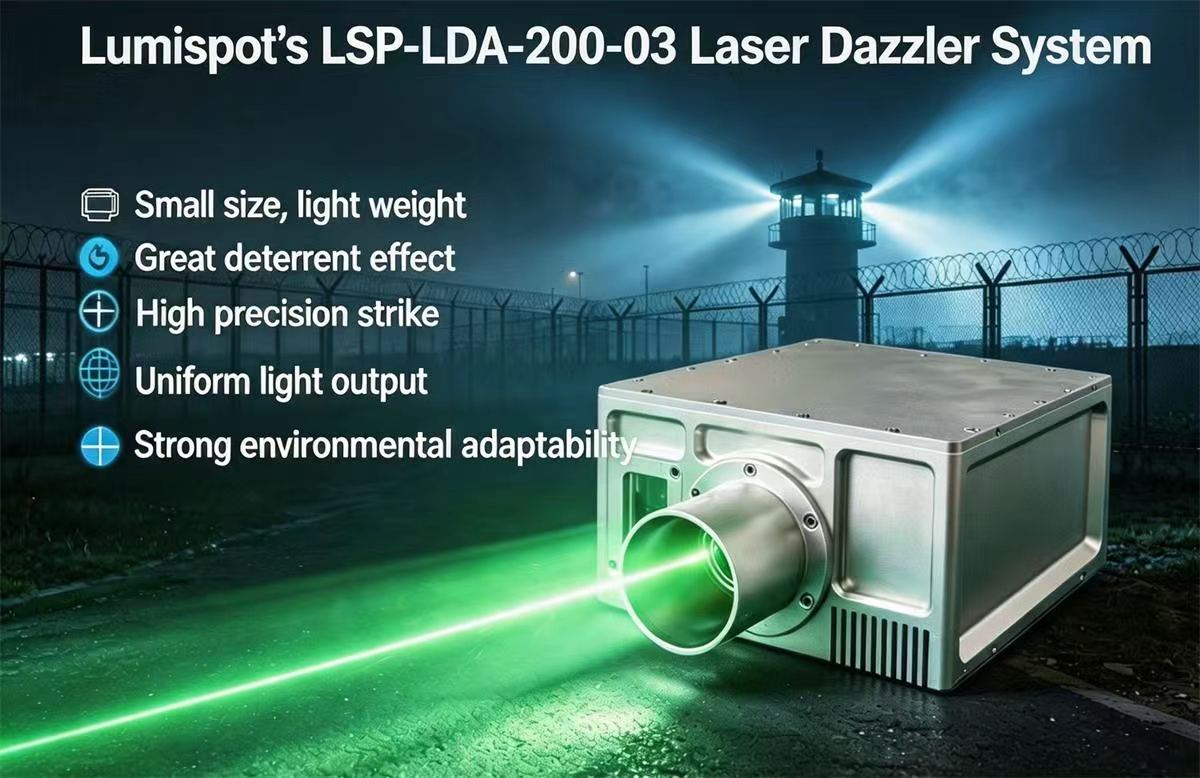

Lumispot has officially unveiled its latest innovation in directed-energy security solutions—the LSP-LDA-200-03 column-type Laser Dazzler. Designed for critical infrastructure protection, border security, and tactical area denial, this advanced system delivers eye-safe laser dazzling capabilities to effectively warn, repel, and deny access to unauthorized personnel at ranges from 10 meters to 200 meters. The LSP-LDA-200-03 represents a significant leap forward in non-lethal defense technology, combining precision optics, intelligent control systems, and ruggedized engineering in a compact, field-deployable package.
Precision Engineering in a Compact Form Factor
Despite its powerful capabilities, the LSP-LDA-200-03 maintains a remarkably compact footprint. Measuring no more than 262 mm×178 mm×113 mm and weighing under 3.8 kg, the dazzler integrates five core subsystems: a laser rangefinder module, semiconductor laser source, galvanometer scanning system, zoom optical system, and intelligent control circuitry. The unit features a robust mechanical interface with three M6 threaded mounting holes, enabling flexible installation across fixed pedestals, mobile platforms, and temporary defensive positions. Every unit undergoes rigorous surface quality inspection to ensure uniform coating integrity, free from peeling, scratches, corrosion, or deformation.
Adaptive Optical Performance for Variable Engagement Distances
At the heart of the LSP-LDA-200-03 lies a high-performance 525 nm semiconductor laser system, delivering an average output power of no less than 4 watts at 25°C. The system generates a distinctive 1:2 aspect ratio spot pattern—approximately 4 meters wide by 2 meters high—across its primary operational envelope of 20 to 200 meters. Through its integrated zoom optical system and laser rangefinder, the dazzler automatically adjusts spot dimensions to maintain consistent coverage regardless of target distance, with spot size tolerance controlled within ±15%. Even at closer ranges between 10 and 20 meters, the system maintains a minimum spot size of 1 meter by 2 meters, ensuring effective dazzling coverage across the entire engagement spectrum.
Dual-Mode Operation with Rapid Response Capability
The LSP-LDA-200-03 offers exceptional operational flexibility through its switchable Continuous and Pulsed emission modes. In pulsed operation, the repetition frequency is adjustable from 1 Hz to 10 Hz, allowing operators to tailor the dazzling effect to specific tactical scenarios—from subtle warning strobes to intense repelling sequences. The system achieves full operational readiness with a power-on emission time of 2 seconds or less, ensuring immediate response capability during critical security events. Combined with 24-hour all-weather standby operation and continuous or stroboscopic mode selection, the dazzler adapts seamlessly to both persistent area denial and rapid-response alarm situations.
Integrated Intelligence: Self-Diagnostics and Precision Ranging
Built-in intelligence sets the LSP-LDA-200-03 apart from conventional dazzling systems. The unit performs comprehensive power-on self-tests and periodic diagnostics, continuously monitoring voltage, current, laser health, rangefinder status, and galvanometer alignment. An integrated laser rangefinder provides accurate distance measurement from 10 to 500 meters under standard atmospheric conditions (10 km visibility, 0.3 target reflectance), with ±5 meter RMS accuracy and 5 Hz update rate. This real-time ranging data feeds directly into the optical control loop, enabling automatic spot size optimization without manual intervention.
Engineered for the Harshest Operational Environments
Environmental resilience defines the LSP-LDA-200-03′s design philosophy. The system operates reliably across an extreme temperature range of -40℃to +60℃, with storage capabilities extending from -50℃to +70℃. Full IP65 ingress protection ensures reliable performance during rain, dust storms, and prolonged damp heat exposure. Additionally, the dazzler maintains operational integrity under low atmospheric pressure conditions down to 47.2 kPa—equivalent to altitudes of approximately 6,000 meters—while built-in vibration resistance ensures stable performance on mobile platforms and in high-shock environments.
Streamlined Integration and Power Efficiency
System integration is simplified through a unified electrical architecture. The dazzler operates from a standard 24 VDC power supply, drawing no more than 6 watts during standby and 60 watts during active operation. Communication with host systems utilizes an RS-485 interface at 9600 bps, with power and data consolidated through a single medium-sized circular 5-pin waterproof aviation connector (Y50EX-1005 series).
Redefining Perimeter Security
The Lumispot LSP-LDA-200-03 Laser Dazzler establishes a new benchmark for non-lethal security technology, merging precision optical engineering with intelligent automation and military-grade environmental hardening. Whether deployed for critical infrastructure protection, border control, or tactical area denial, this compact yet powerful system delivers reliable, eye-safe dazzling performance that deters threats without permanent harm. As security challenges evolve, the LSP-LDA-200-03 stands ready to provide 24/7 protection across the world’s most demanding operational theaters.
Post time: Aug-14-2026
