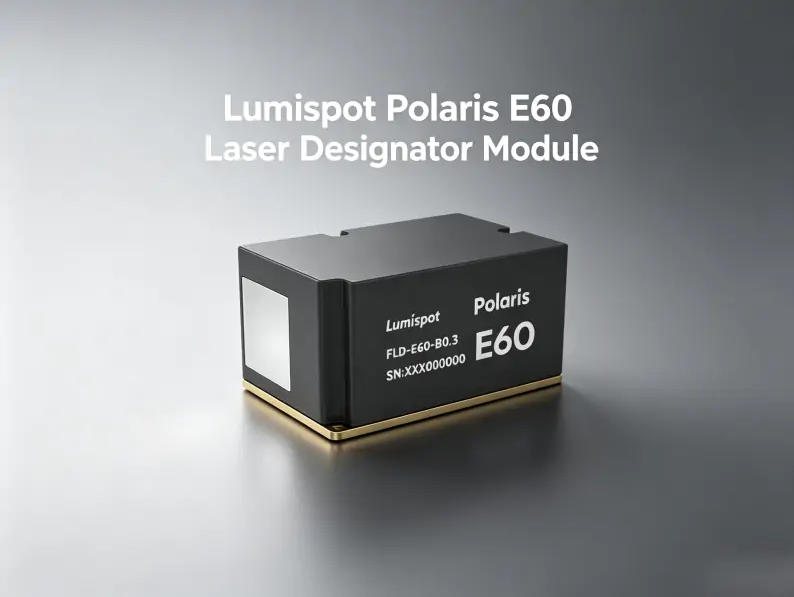

Frequently Asked Questions: Lumispot Polaris E60 Laser Designator Module
Q1: What exactly is the Polaris E60, and what is its primary function?
A: The Polaris E60 (Model: FLD-E60-B0.3) is a next-generation 60mJ Laser Designator Module developed by Lumispot. It integrates high-precision laser designation and rangefinding capabilities into a single, ultra-compact package. Designed for modern military optoelectronic platforms, it provides reliable target illumination and distance measurement for airborne, naval, vehicle-mounted, and individual soldier systems.
Q2: What does “Common Aperture” mean, and why is it important?
A: Common Aperture means the E60 uses a shared optical path for both its transmit (laser emission) and receive (rangefinder) channels. This eliminates the need for separate optical windows, significantly reducing the module’s size, weight, and alignment complexity while improving overall system reliability.
Q3: How much maintenance does the E60 require for temperature fluctuations?
A: Virtually none. The E60 features an advanced athermalized design with Dynamic Thermo-Stable Cavity Technology. It requires no external thermal control and delivers full-range instant operation across its entire temperature span. This removes the need for bulky TEC (Thermoelectric Cooler) systems, saving power and space.
Q4: What laser coding formats does the E60 support?
A: The module supports multiple military-standard laser coding protocols, including:
Precise Frequency Code
Variable Interval Code
PCM Code
And other customizable formats
Coding accuracy is maintained at≤±2μs, ensuring precise target identification and compatibility with various laser-guided munitions and sensor systems.
Q5: How compact and lightweight is the E60?
A: The E60 is engineered for platforms where every gram and millimeter count:
Dimensions: ≤108mm×70mm×55mm
Weight: ≤700g
Its angular minimalist design features a full metallic enclosure with zero exposed electronic components, offering robust mechanical integrity in a pocket-sized form factor.
Q6: What are the power requirements and consumption?
A: The E60 operates on a 18–32V DC power supply and is remarkably efficient:
Standby Power: ≤5W
Average Power (20Hz designation): ≤35W
Peak Current: ≤ 4A
This ultra-low power consumption makes it ideal for battery-operated portable systems and power-constrained aerospace applications.
Q7: What communication interface does the E60 use?
A: The module uses a standard RS422 serial communication interface, ensuring robust, noise-resistant data transmission and seamless integration with existing fire-control and targeting computer systems.
Q8: In what environmental conditions can the E60 operate reliably?
A: The Polaris E60 is built for extreme environments:
Operating Temperature: -40°C to +60°C
Vibration Resistance: Qualified for airborne, vehicle-mounted, and naval dynamic applications
Lifespan: Exceeds 2,000,000 cycles under extensive aging tests
It undergoes rigorous high/low temperature and vibration testing to guarantee mission-critical performance.
Q9: What platforms or applications is the E60 best suited for?
A: The E60 is designed for versatile deployment across:
Airborne Systems: UAVs, helicopters, fixed-wing targeting pods
Naval Systems: Shipboard electro-optical turrets
Vehicle-Mounted Systems: Armored vehicle fire-control systems
Individual Systems: Portable target designators for dismounted soldiers
Q10: How quickly can the E60 be ready for operation?
A: The E60 has a preparation time of ≤ 1 minute, allowing for rapid deployment in time-sensitive tactical situations.
Q11: What makes the E60′s beam quality superior?
A: Lumispot’s patented technologies ensure exceptional beam quality:
Active Energy Monitoring Closed-Loop Control — maintains stable pulse energy
Dynamic Thermo-Stable Cavity — eliminates thermal drift
Beam Pointing Stabilization — keeps the beam on target (≤ 0.03mrad stability)
Homogeneous Light Spot Distribution — ensures uniform target illumination
Q12: Is there a datasheet available for download?
A: Yes. The full technical datasheet for the FLD-E60-B0.3 is available for download on the product page. It contains detailed mechanical drawings, interface definitions, and comprehensive performance curves.
The Lumispot Polaris E60 redefines what a military laser designator can achieve — packing 60mJ of pulse energy, 11km rangefinding capability, and 6km+ designation range into a sub-700g, fully athermalized module. With no temperature control required, common aperture architecture, and battle-proven reliability from -40°C to +60°C, the E60 is the ideal targeting solution for next-generation defense platforms.
For more information or to request a quote, please contact Lumispot or your regional distributor.
