Micro 5KM Laser Rangefinder Module
Product Description
The ELRF-F21 laser rangefinder module is a laser ranging module developed based on Lumispot's independently researched and developed 1535nm erbium laser. It adopts a single-pulse Time-of-Flight (TOF) ranging method with a maximum ranging distance of ≥6km(@large building). Composed of a laser, transmitting optical system, receiving optical system, and control circuit board, it communicates with the host computer through a TTL serial port. It provides host computer test software and communication protocols, facilitating user secondary development. It boasts features such as small size, light weight, stable performance, high shock resistance, and Class 1 eye safety.
Structural Composition and Main Performance Indicators
The LSP-LRS-0510F laser rangefinder consists of a laser, a transmitting optical system, a receiving optical system and a control circuit. The main performance is as follows:
Main functions
a) single ranging and continuous ranging;
b) Range strobe, front and rear target indication;
c) Self-test function.
Main Application
Used in Laser Ranging, Defense, Aiming and Targeting,UAV Distance Sensors, Optical Reconnaissance, Rifle Style LRF Module,UAV Altitude Positioning,UAV 3D Mapping, LiDAR (Light Detection and Ranging)
Features
● High precision ranging data compensation algorithm: optimization algorithm, fine calibration
● Optimized ranging method: accurate measurement, improve ranging accuracy
● Low power consumption design: Efficient energy saving and optimized performance
● Working capacity under extreme conditions: excellent heat dissipation,guaranteed performance
● Miniaturized design, no burden to carry

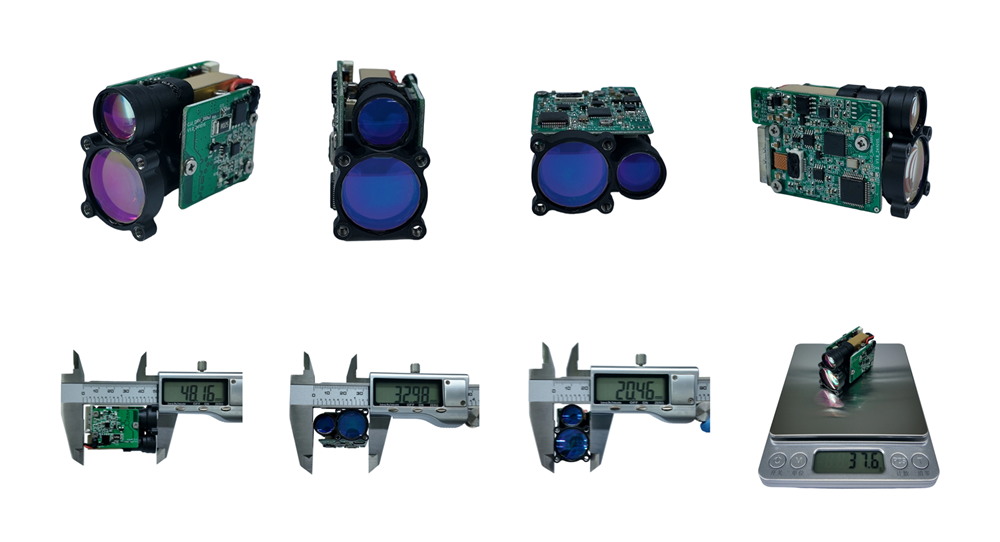

Product Details
Specifications
| Item | Parameter |
| Eye-Safety Level | Classl |
| Laser Wavelength | 1535±5nm |
| Laser Beam Divergence | ≤0.6mrad |
| Receiver Aperture | Φ16mm |
| Maximum Range | ≥6km (@large target:building) |
| ≥5km (@vehicle:2.3m×2.3m) | |
| ≥3km (@person:1.7m×0.5m) | |
| Minimum Range | ≤15m |
| Ranging Accuracy | ≤±1m |
| Measurement Frequency | 1~10Hz |
| Range Resolution | ≤30m |
| Probability of Ranging Success | ≥98% |
| False-Alarm Rate | ≤1% |
| Data Interface | RS422 serial,CAN(TTL optional) |
| Supply Voltage | DC 5~28V |
| Average Power Consumption | ≤1W @ 5V (1Hz operation) |
| Peak Power Consumption | ≤3W@5V |
| Stand-by Power Consumption | ≤0.2W |
| Form Factor / Dimensions | ≤50mm×23mm×33.5m |
| Weight | ≤40g |
| Operating Temperature | -40℃～+60℃ |
| Storage Temperature | -55℃～+70℃ |
| Impect | >75g@6ms |
| Download |  Datasheet |
Note:
Visibility ≥20km, humidity ≤80%
Large target: the target size is greater than the spot size
