Zoom and Fixed Focus Infrared Laser Illumination Module
Product Description

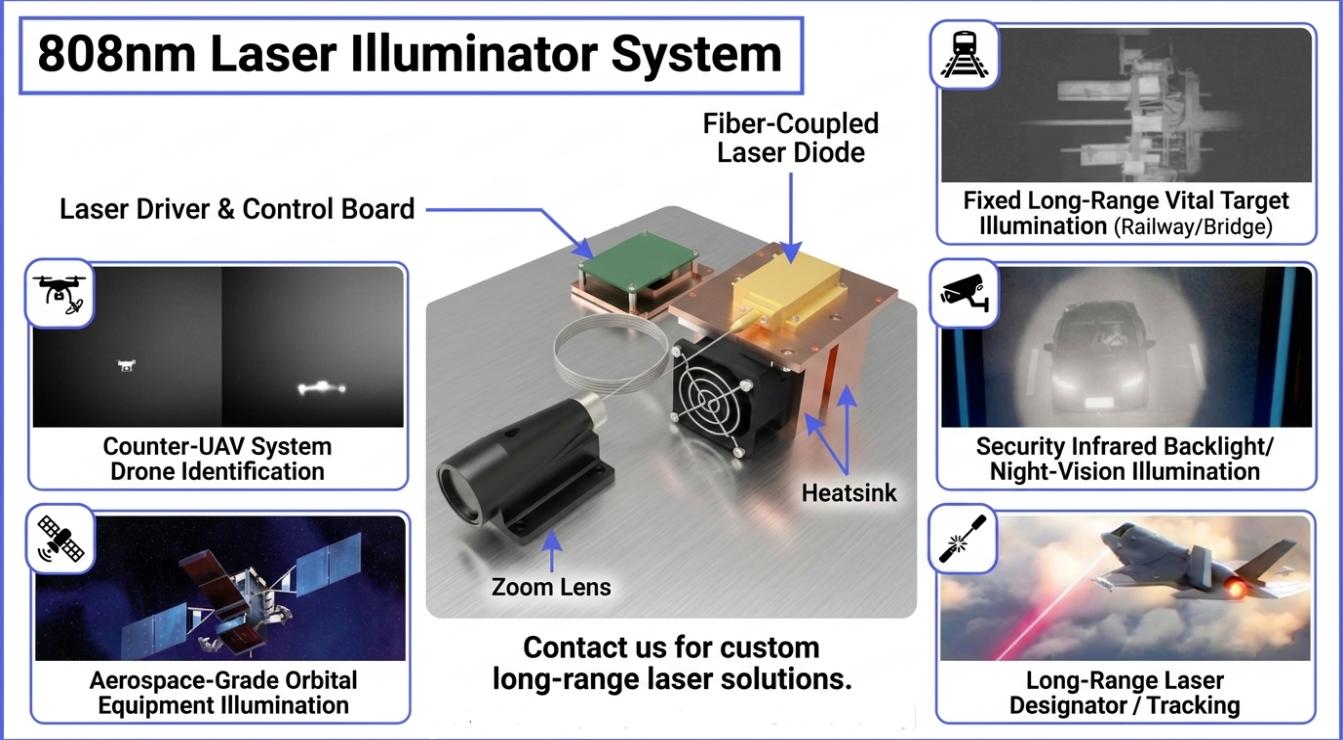

Zoom and Fixed Focus Infrared Laser Illumination Module is mainly composed of a laser diode, a drive control board, a heat sink, and a zoom or fixed-focus lens. It features good monochromaticity, small size, light weight, excellent beam uniformity, and strong environmental adaptability. It is widely used in industries such as defense and security.
Product Function
1. Equipped with power adjustment function and data reporting
2. Equipped with illumination field-of-view focusing function and focusing data reporting (fixed-focus
models do not have this function)
3. Power-on self-check and status reporting
4. Structural design and interfaces meet integration,installation, communication, and other requirements
5. Serial communication supports continuous communication; if the host computer fails to send
commands to the illumination system for more than 2seconds, the illumination system automatically stops
emitting light
6. Equipped with self-protection function
Main Application
1. Fixed Long-Range Target Illumination: Vital infrastructure and border protection.
2. Security & Night Vision: Overcoming backlighting and total darkness in infrared modes.
3. Counter-UAV Systems: Precision illumination and tracking of drone threats.
4. Aerospace-Grade Orbital Lighting: Reliable performance for satellite and orbital equipment.
5. Long-Range Laser Designation: High-accuracy marking for tactical operations.
Product Feature
1：Laser Diode-Module Controllable: Our advantages lie in the independent R&D and controllable production of laser diodes, offering greater flexibility, as well as good circuit reliability.
2：OEM Output Power: our own platform can cover a range from 20W to 400W; our optics, mechanics, and electronics each have their own common platform.
3：Resilience in Extreme Environments
Standard equipment suffers from power failure or light decay in harsh climates. Our modules are built with aerospace-grade components, operating stably from -40°C to +60°C (with custom options up to 120°C).
Product Detail
Product Parameters
|
Parameter |
Unit |
Technical Indicators |
||||||||
|
Model |
LS-808-C50-F400-DC24-A-ADJ-S |
LS-808-C50-F200-DC28-A-ADJ-0.2° |
LS-808-C70-F200-DC28-A-ADJ-0.07/0.7 |
LS-808-C80C-F105-DC48-A-ADJ-D0.1 0.2 |
LS-808-C80-F105-DC48-A-ADJ-1.33/130 |
LS-808-C110-F105-DC48-A-ADJ-1.33/130 |
LS-808-C140-F200-A-ADJ-0.07/0.7-M |
LS-808-C200-F200-DC48-A-ADJ-0.1 |
LS-808-C400-F400-DC48-S-ADJ |
|
| Power |
W |
≥50 |
≥70 |
≥80 |
≥80 |
≥110 |
≥140 |
≥200 |
≥400 |
|
| Effective distance |
m |
≤5000 |
≥5000 |
5000-8000 |
||||||
| Lighting angle |
° |
0.4-30 (zoom) |
0.2 (fixed focus) |
0.07 ° -0.7 (zoom) |
0.1-0.2 (zoom) |
0.076 ° -7.5 ° (zoom) |
0.07°-0.7° |
0.1 ° (fixed focus) |
customizable |
|
| Spot size |
m |
<36 (minimum angle, maximum distance) |
<19 (minimum angle, farthest distance) |
<6.5 (minimum angle, at 5000m) |
<9 (minimum angle, at 5000m) |
<7 (minimum angle, at 5000m) |
<6.5 (minimum angle, at 5000m) |
<9 (minimum angle, at 5000m) |
/ |
|
| Spot shape |
/ |
circle |
||||||||
| Total power consumption |
W |
＜150 |
＜280 |
＜300 |
＜400 |
＜600 |
＜700 |
≤1600 |
||
| Input voltage |
V |
24±10% |
24±10% |
48/28 |
48 |
|||||
| Is it produced nationwide |
/ |
No (domestication of some electronic components) |
Yes |
|||||||
| Variable magnification time |
s |
＜10s |
/ |
＜10s |
＜5s |
/ |
/ |
|||
| Communication interface |
/ |
RS422/RS232/RS485 |
||||||||
| Operating Temperature |
℃ |
-40—+60 |
-40—+60 |
|||||||
| Storage temperature |
℃ |
-50—+70 |
-50—+65 |
|||||||
| Working method |
Continuous/Pulse |
Continuous (customizable pulse frequency according to requirements) |
||||||||
| Lifespan |
h |
＞10000 |
||||||||
| Integration method |
/ |
Whole machine integration |
Distributed module layout |
Distributed module layout (can customize sealed modules according to customer needs) |
Whole machine sealing |
|||||
| Appearance |
mm |
＜260*105*72 |
Drive circuit: ≤ 100 * 70 * 25; |
Driver board+radiator size: ≤ 210 * 160 * 100 |
Driver board+radiator size: ≤ 212 * 112 * 105; |
Driver board+radiator size: ≤ 280 * 150 * 100 |
Laser module size: ≤ 270 * 170 * 120 |
Driver board+radiator size: ≤ 280 * 230 * 150 |
Driver board+radiator size: ≤ 320 * 200 * 100 (excluding water-cooled pipe interface) |
|
| Weight |
kg |
＜2.5kg |
＜1.5kg |
＜3.5kg |
＜2.5kg |
＜2.5kg |
＜4kg |
≤6.5kg |
＜6kg |
＜4.5kg(excluding chiller) |
| Cooling method |
/ |
Forced air cooling |
Forced air cooling |
Forced air cooling |
Forced air cooling |
Forced air cooling |
Forced air cooling |
Forced air cooling |
Forced air cooling |
Water cooling (excluding chiller) |
Note:
We can customize laser lighting fixtures with different irradiation angles and laser output power according to customer needs
