1.2KM High Repetition Laser Rangefinder Module
Product Description
DLRF-C1.2-F: Compact 905nm Laser Rangefinder Module up to 1.2KM Measurement
DLRF-C1.2-F diode laser rangefinder is an innovative product that integrates advanced technology and humanized design carefully developed by Lumispot. Using a unique 905nm laser diode as the core light source, this model not only ensures human eye safety, but also sets a new benchmark in the field of laser ranging with its efficient energy conversion and stable output characteristics. Equipped with high-performance chips and advanced algorithms independently developed by Lumispot, the DLRF-C1.2-F achieves excellent performance with long life and low power consumption, perfectly meeting the market demand for high-precision and portable ranging equipment.
Main Application
Used in UAV, sighting, outdoor handheld products and other ranging applications (aviation, police,railway, electricity, water conservancy communication,environment, geology, construction, fire station, blasting,agriculture, forestry, outdoor sports, etc.)
Features
● High precision ranging data compensation algorithm: optimization algorithm, fine calibration
● Optimized ranging method: accurate measurement, improve ranging accuracy
● Low power consumption design: Efficient energy saving and optimized performance
● Working capacity under extreme conditions: excellent heat dissipation,guaranteed performance
● Miniaturized design, no burden to carry

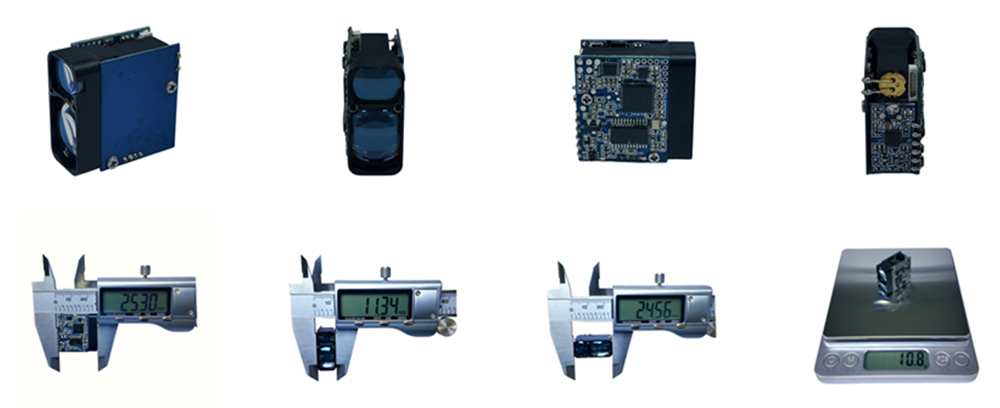

Product Details
Specifications
| Item | Parameter |
| Eye-safety level | Class I |
| Laser wavelength | 905nm±5nm |
| Laser beam divergence | ≤6mrad |
| Ranging capacity | 3～1500m (Building) |
| Ranging accuracy | ±0.5m (≤80m)±1m(≤1000m) |
| Ranging frequency | 60~800Hz(self-adaption) |
| Accurate measurement | ≥98% |
| Power supply | DC2.7V～5.0V |
| Operating power consumption | ≤1.8W |
| Standby power consumption | ≤0.8W |
| Communication type | UART(TTL_3.3V) |
| Dimension | 25mmx26mmx13mm |
| Weight | 11g±0.5g |
| Operating temperature | -40℃～+60℃ |
| Storage temperature | -45℃～+70℃ |
| False alarm rate | ≤1% |
| Impact | 1000g,20ms |
| Vibration | 5~50~5Hz,1octave /min, 2.5g |
| Download |  Datasheet |
Note:
Visibility ≥10km, humidity ≤70%
Large target: the target size is greater than the spot size
