1.5KM Laser Rangefinder Module
Product Description
Applications: Laser Range Finding,Defense,Scope Aiming and Targeting,UVAs Distance Sensor,Optical Reconnaissance,Rifile Mounted LRF module
DLRF-C1.5: Compact 905nm Laser Rangefinder Module up to 1.5KM Measurement
DLRF-C1.5 diode laser rangefinder is an innovative product that integrates advanced technology and humanized design carefully developed by Lumispot. Using a unique 905nm laser diode as the core light source, this model not only ensures human eye safety, but also sets a new benchmark in the field of laser ranging with its efficient energy conversion and stable output characteristics. Equipped with high-performance chips and advanced algorithms independently developed by Lumispot, the DLRF-C1.5 achieves excellent performance with long life and low power consumption, perfectly meeting the market demand for high-precision and portable ranging equipment.
Main Application
Used in UAV, sighting, outdoor handheld products and other ranging applications (aviation, police,railway, electricity, water conservancy communication,environment, geology, construction, fire station, blasting,agriculture, forestry, outdoor sports, etc.)
Features
High precision ranging data compensation algorithm: optimization algorithm, fine calibration
Optimized ranging method: accurate measurement, improve ranging accuracy
Low power consumption design: Efficient energy saving and optimized performance
Working capacity under extreme conditions: excellent heat dissipation,guaranteed performance
Miniaturized design, no burden to carry
Related Content
* If you need more detailed technical information about Lumispot Tech's Erbium-doped glass lasers, you can download our datasheet or contact them directly for further details. These lasers offer a combination of safety, performance, and versatility that makes them valuable tools in various industries and applications.
Product Details
Specifications
| Item | Parameter |
| Eye-safety level | Class I |
| Laser wavelength | 905nm±5nm |
| Laser beam divergence | ≤6mrad |
| Ranging capacity | 3～1500m (Building) |
| Ranging accuracy | ±1m(≤1000m),0.2±0.0015*L(＞1000m) |
| Resolution | 0.1m |
| Ranging frequency | 1~10Hz(self-adaption) |
| Accurate measurement | ≥98% |
| Beam divergency | ≤6mrad |
| Power supply | DC2.7V～5.0V |
| Operating power consumption | ≤1.5W |
| Standby power consumption | ≤0.8W |
| Sleep power consumption | ≤1mW |
| Communication type | UART(TTL_3.3V) |

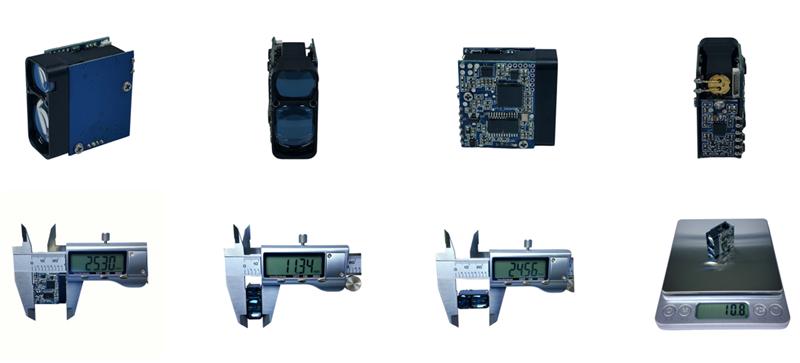

| Dimension | 25mmx26mmx13mm |
| Weight | 11g±0.5g |
| Operating temperature | -40℃～+65℃ |
| Storage temperature | -40℃～+70℃ |
| False alarm rate | ≤1% |
| Impact | 1000g,20ms |
| Vibration | 5~50~5Hz,1octave /min, 2.5g |
| Start-up time | ≤200ms |
| Download |  Datasheet |
Note:
Visibility ≥10km, humidity ≤70%
Large target: the target size is greater than the spot size
