    450nm Blue Fiber Coupled Diode Laser Featured Image
    • 450nm Blue Fiber Coupled Diode Laser

    Medical       Laser Dazzler
    Illumination       Detetcion       Research

    450nm Blue Fiber Coupled Diode Laser

    Wavelength: 450nm±20nm(OEM±1nm)

    Power Range: 4W -300W

    Fiber Core Diameter: 50um-200um

    Cooling: @25℃ water cooling

    NA: 0.22

    NA(95%): 0.1-0.17


    Product Detail

    Product Tags

    Specifications

    Product Name Wavelength Output Power Fiber Core Diameter NA(95%) Model
    Multimode Fiber-Coupled Blue Laser Diode 450nm 4W 50um 0.1 LUM-0450-0004051-11CP001




    Multimode Fiber-Coupled Blue Laser Diode 450nm 8W 50um 0.12 LUM-0450-0008051-11CQ001


    Multimode Fiber-Coupled Blue Laser Diode 450nm 9W 105um 0.17 LUM-0450-0009011-11BW001
    Multimode Fiber-Coupled Blue Laser Diode 450nm 10W 105um 0.12 LUM-0450-0010011-11BW001
    Multimode Fiber-Coupled Blue Laser Diode 450nm 15W 50um 0.12 LUM-0450-0015053-11BG012
    Multimode Fiber-Coupled Blue Laser Diode 450nm 20W 105um 0.15 LUM-0450-0020013-11BG012
    Multimode Fiber-Coupled Blue Laser Diode 450nm 35W 50um 0.13 LUM-0450-0035051-11BA003
    Multimode Fiber-Coupled Blue Laser Diode 450nm 50W 105um 0.15 LUM-0450-0050011-11BA018
    Multimode Fiber-Coupled Blue Laser Diode 450nm 60W 50um 0.12 LUM-0450-0060011-11BA018
    Multimode Fiber-Coupled Blue Laser Diode 450nm 100W 105um 0.13 LUM-0450-0100011-11BB022
    Multimode Fiber-Coupled Blue Laser Diode 450nm 200W 105um 0.15 LUM-0450-0200011-11BD043
    Multimode Fiber-Coupled Blue Laser Diode 450nm 300W 105um 0.15 LUM-0450-0300011-11BT010
    Note: The wavelength tolerance is土20nm. If there are special requirements, VBG technology can be used to achieve a tolerance of土0.2-1nm.

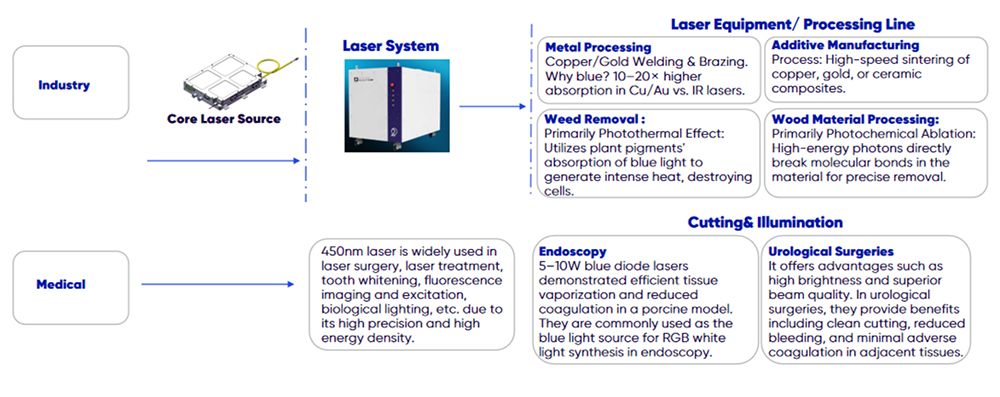

    Applications

    app
