Conductively Cooled Diode Side-Pumped Gain Module
Product Description

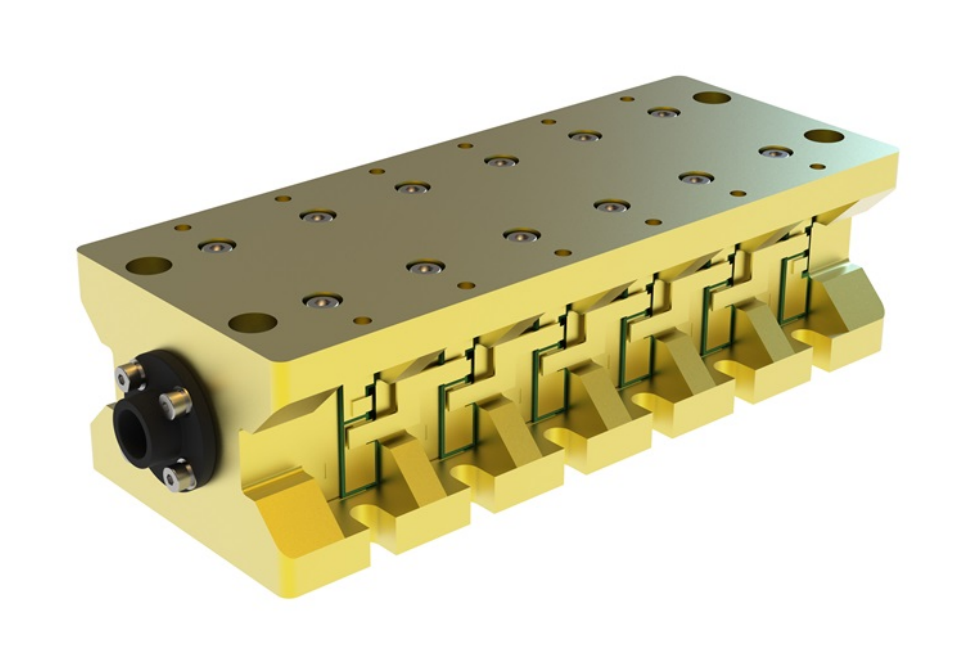

The Conductively Cooled Diode Side-Pumped Gain Module is a core component of solid-state laser.Depending on application needs and power levels, it supports various cooling methods—including TEC temperature control, water cooling, forced air cooling, conduction cooling, and no temperature control—making it suitable for fields like space communications, micro-nano processing, atmospheric research, environmental science, medical devices, and optical image processing, with excellent adaptability and application prospects.
Main Application
Used in Space Communications,Micro-nano Processing,Atmospheric Research,Environmental Science,Medical Devices,and Optical Image Processing.
Features
1.Uniform Pumping ability
2.TEC /water/forced air/conduction/passive cooling
3.Mechanical fixation/Indium encapsulation
4.Customizable temperature range
Product Details
Specifications
|
Item |
Unit |
TQ2700-ms5 |
TQ3600-ms5 |
TQ4500-ms6 |
TQ6000-ms6 |
TQ4000-ms6 |
TQ3200-id5 |
TQ3600-id5 |
TQ12000-id8 |
TQ15600-id7 |
TQ1000-ms3 |
| Pump Wavelength |
nm |
792~812 |
|||||||||
| Pump Spectral Width |
nm |
4nm |
|||||||||
| Wavelength/Temperature Coe cient |
nm/℃ |
0.28nm/℃ |
|||||||||
| Pump Rated Power |
W |
2700 |
3600 |
4500 |
6000 |
4000 |
3200 |
3600 |
12000 |
15600 |
1000 |
| Threshold Current |
μs |
250 |
250 |
250 |
1000 |
250 |
250 |
250 |
250 |
250 |
150 |
| Operating Current |
Hz |
20 |
20 |
20 |
1 |
25 |
30 |
25 |
25 |
25 |
5 |
| Operating Voltage |
% |
0.5% |
0.5% |
0.5% |
1% |
0.625% |
0.75% |
0.625% |
0.625% |
0.625% |
0.075% |
| Pulse Width |
A |
17 |
17 |
17 |
17 |
21 |
17 |
17 |
17 |
21 |
21 |
| Repetition Rate |
A |
100 |
100 |
100 |
100 |
220 |
100 |
100 |
100 |
160 |
100 |
| Duty Cycle |
V |
54 |
72 |
100 |
120 |
36 |
32+32 |
40+40 |
120+120 |
86+86 |
22 |
| Doping Concentration |
- |
Nd_YAG |
Nd_YVO4 |
||||||||
| Crystal Specification |
at% |
0.6at%/0.8at%/1.0at% |
0.6at% |
||||||||
| Emission Wavelength |
nm |
1064 |
1064 |
||||||||
| Crystal Dimensions |
mm |
Ø5x50mm |
Ø5x60mm |
Ø6x62mm |
Ø6x125mm |
Ø6x60mm |
Ø5x20mm |
Ø5x28mm |
Ø8x45mm |
Ø7x40mm |
Ø3x25mm |
| Number of crystals |
pcs |
1 |
1 |
1 |
1 |
1 |
2 |
2 |
2 |
2 |
1 |
| Crystal Fixation Method |
|
Mechanical Fixation |
Indium Encapsulation |
Mechanical Fixation | |||||||
| Cooling method |
|
Conduction Cooling |
|||||||||
| Recommended Water Temperature |
℃ |
25±5 |
|||||||||
| Recommended Water Pressure |
℃ |
-45~60 |
|||||||||
| Datasheet |
|
||||||||||
Datasheet
